High Availability & Scalability





Scalability & High Availability

• Scalability means that an application / system can handle greater loads by adapting
• There are two kinds of scalability:
  • Vertical Scalability
  • Horizontal Scalability ( =elasticity)
• Scalability is linked but different to High Availability





Vertical Scalability

• Vertical scalability means increasing the size of the instance
• For example, your application runs on a t2.micro
• Scaling that application vertically means running it on a t2.large
• Vertical scalability is very common for nondistributed systems, such as a database.
• RDS, ElastiCache are services that can scale vertically.
• There's usually a limit to how much you can vertically scale (hardware limit)























Horizontal Scalability



• Horizontal Scalability means increasing the number of instance / systems for your application
• Horizontal scaling implies distributed systems.
• This is very common for web applications / modern applications
• It's easy to horizontally scale thanks the cloud offerings such as Amazon EC2



































High Availability

• High Availability usually goes hand in hand with horizontal scaling
• High availability means running your application / system in at least 2 data center (==Availability Zones)
• The goal of high availability is to survive a data center loss



• The high availability can be passive (for RDS Multi AZ for example)
• The high availability can be active (for horizontal scaling)























High Availability & Scalability For EC2

• Vertical Scaling: Increase instance size (=scale up / down)
  • From:t2.nano - 0.5G of RAM, 1 vCPU
  • To: u-12tb1.metal - 12.3TB of RAM, 448 vCPUs
• Horizontal Scaling: Increase number of instance (=scale out / in)
  • Auto Scaling Group
  • Load Balancer
• High Availability: Run instances for the same application across multi AZ
  • Auto Scaling Group multi AZ
  • Load Balancer multi AZ









What is load balancing?

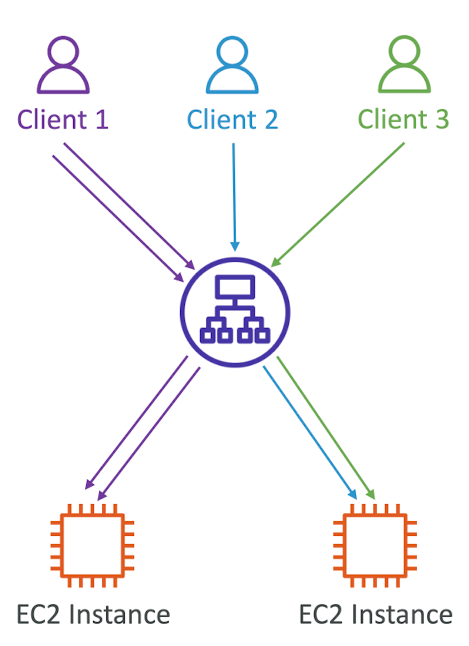

• Load Balances are servers that forward traffic to multiple servers (e.g., EC2 instances) downstream







Why use a load balancer?

• Spread load across multiple downstream instances
• Expose a single point of access (DNS) to your application
• Seamlessly handle failures of downstream instances
• Do regular health checks to your instances
• Provide SSL termination (HTTPS) for your websites
• Enforce stickiness with cookies
• High availability cross zones
• Separate public traffic from private traffic



Why use an Elastic Load Balancer?

• An Elastic Load Balancer is a managed load balancer
  • AWS guarantees that it will be working
  • AWS takes care of upgrades, maintenance, high availability
  • AWS provides only a few configuration knobs
• It costs less to setup your own load balancer but it will be a lot more effort on your end
• It is integrated with many AWS offerings / services
  • EC2, EC2 Auto Scaling Groups, Amazon ECS
  • AWS Certificate Manager (ACM), CloudWatch
  • Route 53, AWS WAF, AWS Global Accelerator





Health Checks

• Health Checks are crucial for Load Balancers
• They enable the load balancer to know if instances it forwards traffic to are available to reply to requests

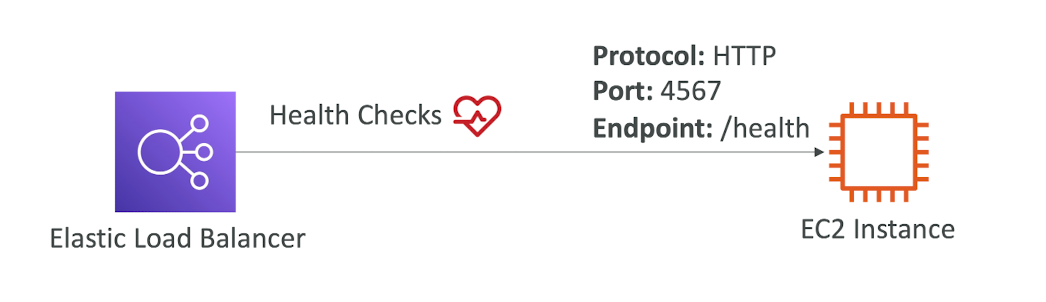

• The health check is done on a port and a route (/health is common)
• If the response is not 200 (OK), then this instances is unhealthy

Types of load balancer on AWS

• AWS has 4 kinds of managed Load Balancers
• Classic Load Balancer (v1 - old generation) - 2009 - CLB
  • HTTP, HTTPS, TCP, SSL (secure TCP)
• Application Load Balancer (v2 - new generation) - 2016 -ALB
  • HTTP, HTTPS, WebSocket
• Network Load Balancer (v2 - new generation) - 2017 - NLB
  • TCP, TLS (secure TCP), UDP
• Gateway Load Balancer - 2020 - GWLB
  • Operates at layer 3 (Network layer) - IP Protocol
• Overall, it is recommended to use the newer generation load balancers as they provide more features
• Some load balancers can be setup as internal (private) or external (public) ELBs

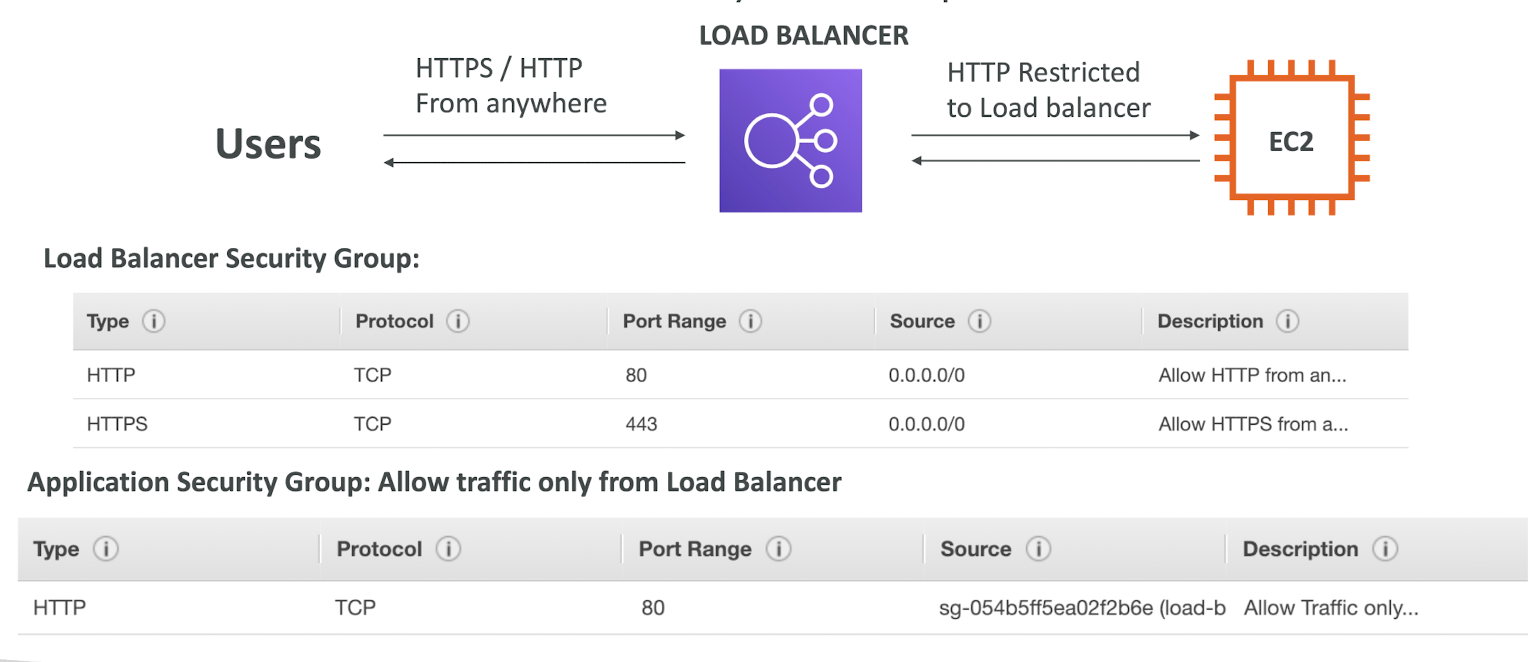

Load Balancer Security Groups

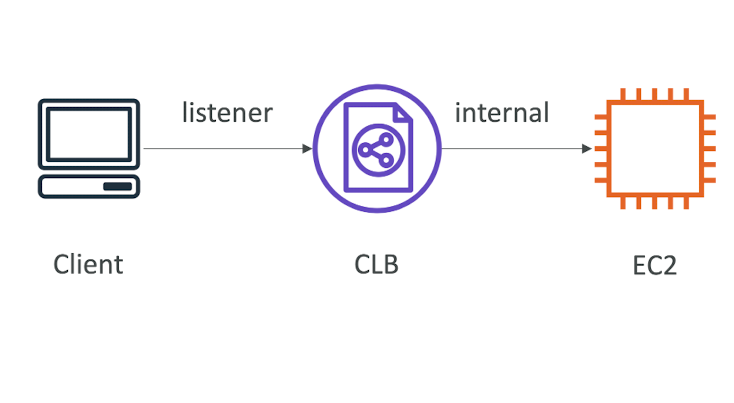

Classic Load Balancers (v1)

• Supports TCP (Layer 4), HTTP & HTTPS (Layer 7)
• Health checks are TCP or HTTP based
• Fixed hostname
  xxx.region.elb.amazonaws.com













Application Load Balancer (v2)

• Application load balancers is Layer 7 (HTTP)



• Load balancing to multiple HTTP applications across machines (target groups)
• Load balancing to multiple applicaions on the same machine (ex:containers)
• Support for HTTP/2 and WebSocket
• Support redirects (from HTTP to HTTPS for example)

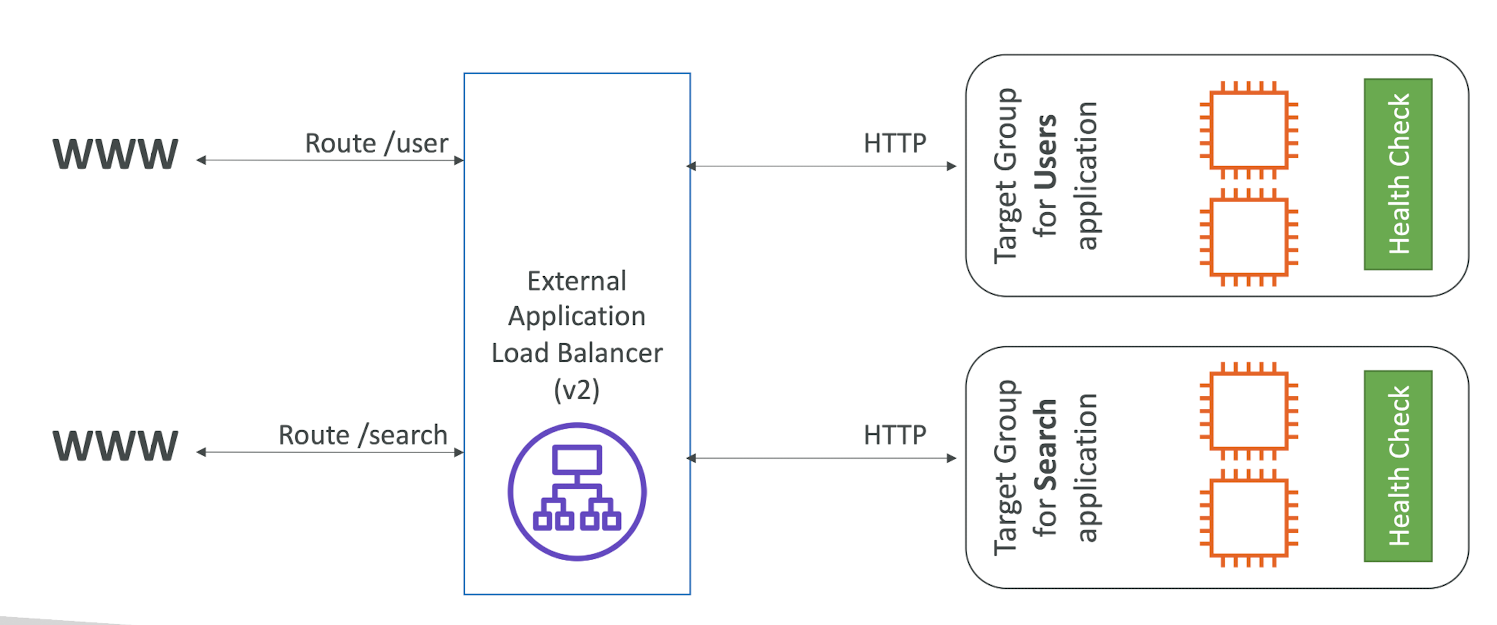

• Routing tables to different target groups:
  • Routing based on path in URL (example.com/users & example.com/posts)
  • Routing based on hostname in URL (one.example.com & other.example.com)
  • Routing based on Query String, Headers
    (example.com/users?id=123&order=false)
• ALB are a great fit for micro services & container-based application
  (example:Docker & Amazon ECS)
• Has a port mapping feature to redirect to a dynamic port in ECS
• In comparison, we'd need multiple Classic Load Balancer per application



Application Load Balancer (v2) HTTP Based Traffic





Application Load Balancer (v2) Taret Groups

• EC2 instances (can be managed by an Auto Scaling Group) - HTTP
• ECS tasks (managed by ECS itself) -HTTP
• Lambda functions - HTTP request is translated into a JSON event
• IP Addresses - must be private IPs



• ALB can route to multiple target groups
• Health checks are at the target group level



Application Load Balancer (v2) Query Strings/Parameters Routing









Application Load Balancer (v2)  Good to Know

• Fixed hostname (XXX.region.elb.amazonaws.com)

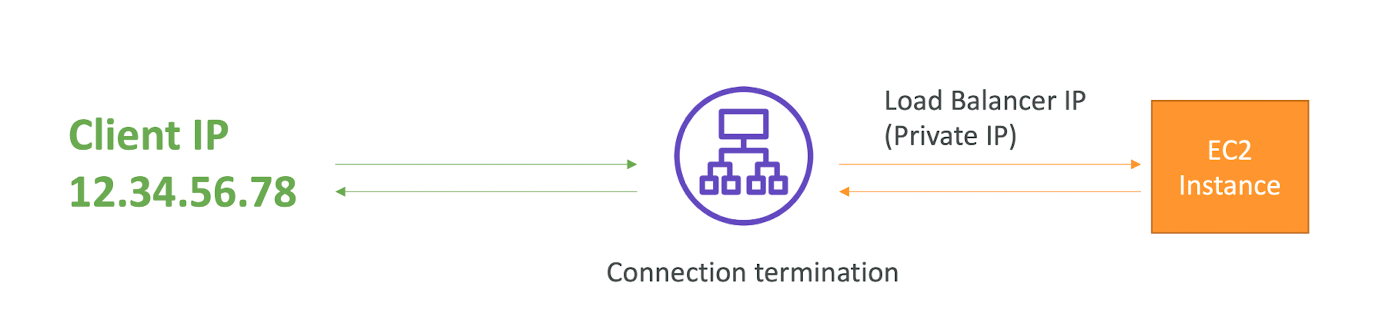

• The application servers don't see the IP of the client directly
  • The true IP of the client is inserted in the header X-Forwarded-For
  • We can also get Port (X-Forwarded-Port) and proto (X-Forwarded-Proto)





Network Load Balancer (v2)

• Network load balancers (Layer 4) allow to:
  • Forward TCP & UDP traffic to your instances
  • Handle millions of request per seconds
  • Less latency ~ 100ms (vs 400 ms for ALB)
• NLB has one static IP per AZ, and supports assigning Elastic IP
  (helpful for whitelisting specific IP)



• NLB are used for extreme performance, TCP or UDP traffic
• Not included in the AWS free tier





Network Load Balancer (v2) TCP (Layer 4) Based Traffic

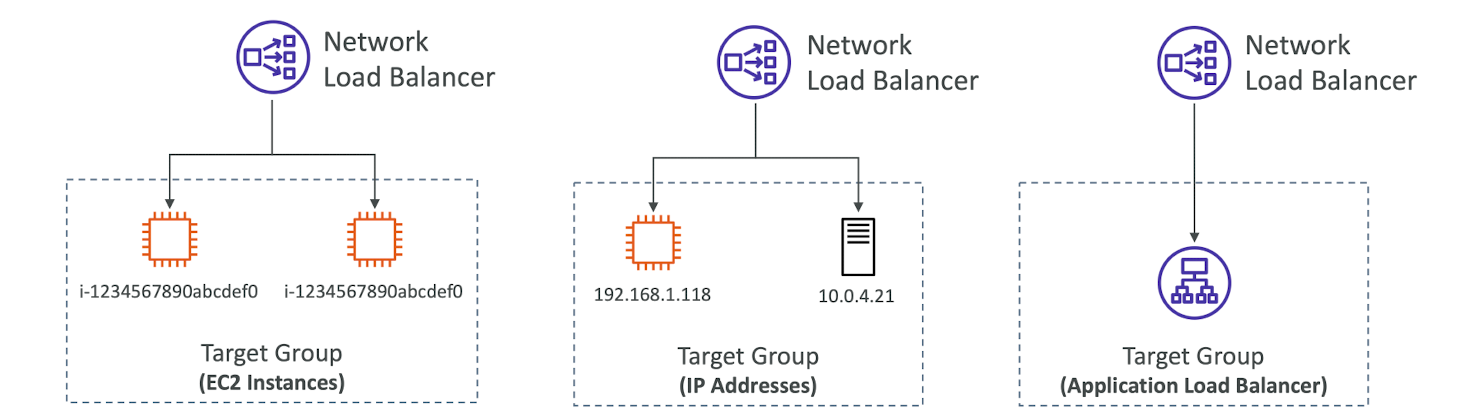

Network Load Balancer - Target Groups

• EC2 instances
• IP Addresses - must be private IPs
• Application Load Balancer
• Health Checks support the TCP,HTTP and HTTPS Protocols

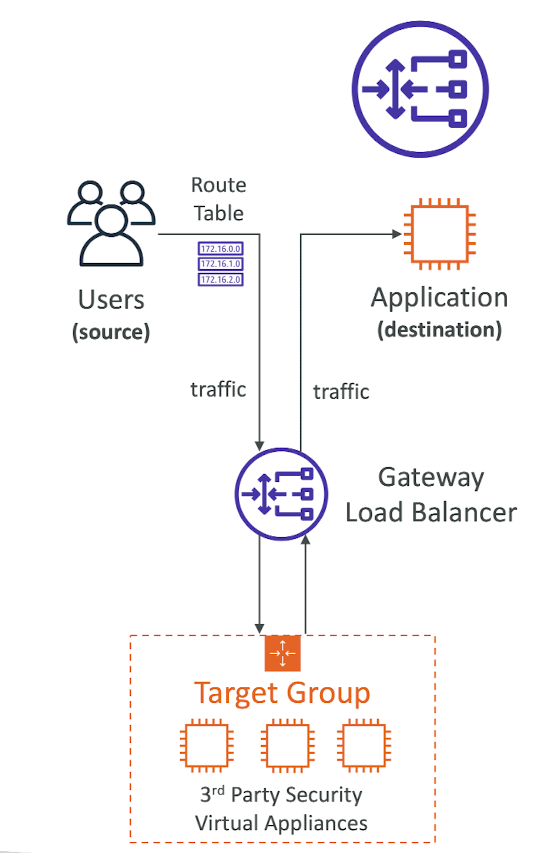

Gateway Load Balancer

• Deploy, scale, and manage a fleet of 3rd party network virtual appliances in AWS
• Example: Firewalls, Intrusion Detection and Prevention Systems, Deep Packet Inspection Systems, payload manipulaiont, ...
• Operates at Layer 3 (Network Layer) - IP Packets
• Combines the following functions:
  • Transparent Network Gateway - single entry/exit for all traffic
  • Load Balancer - distributes traffic to your virtual appliances
• Uses the GENEVE protocol on port 6081

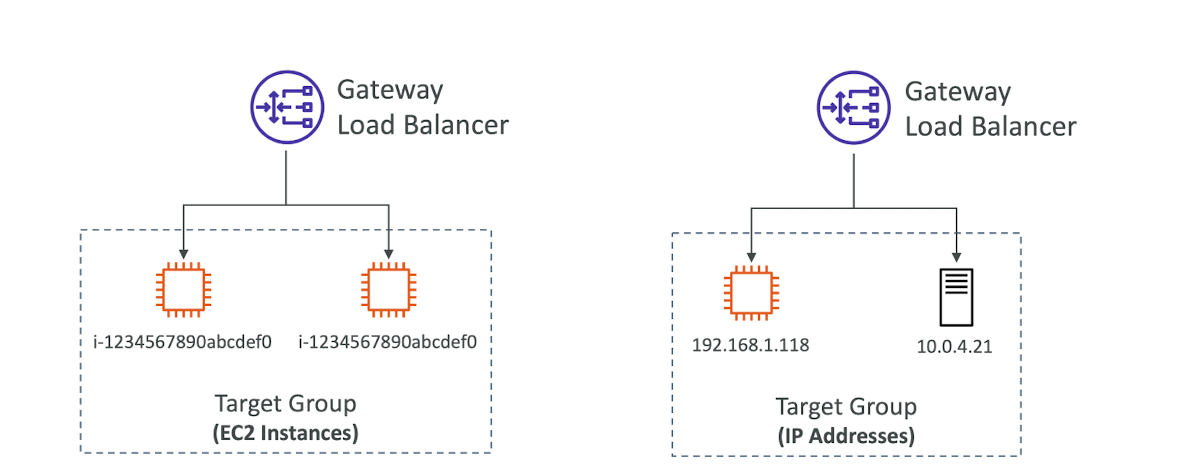

Gateway Load Balancer - Target Groups

• EC2 instances
• IP Addresses - must be private IPs







Sticky Sessions (Session Affinity)

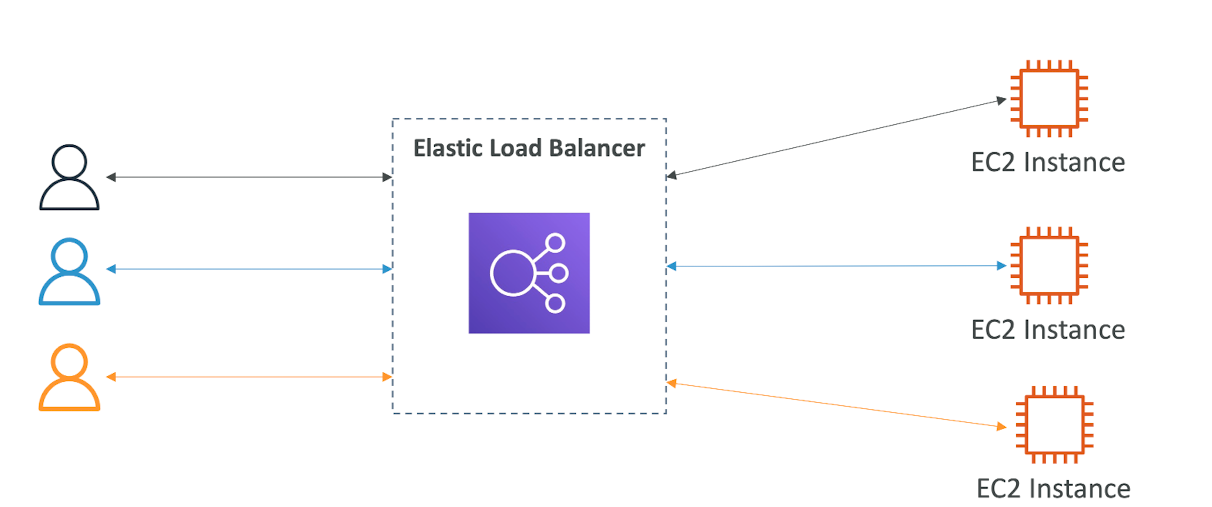

• It is possible to implement stickiness so that the same client is always redirected to the same instance behind a load balancer
• This works for CLB, ALB, NLB
• For both CLB & ALB, the "cookie" used for stickiness has an expiration date you control
• Use case: make sure the user doesn't lose his session data
• Enabling stickiness may bring imbalance to the load over the backend EC2 instances























Sticky Sessions - Cookie Names

• Applicaion-based Cookies
  • Custom cookie
    • Generated by the target
    • Can include any custom attributes required by the application
    • Cookie name must be specified individually for each target group
    • Don't use AWSALB,AWSALBAPP, or AWSALBTG (reserved for use by the ELB)
  • Application cookie
    • Generated by the load balancer
    • Cookie name is AWSALBAPP
• Duration-based Cookies
  • Cookie generated by the load balancer
  • Cookie name is AWSALB for ALB, AWSELB for CLB



Cross-Zone Load Balancing

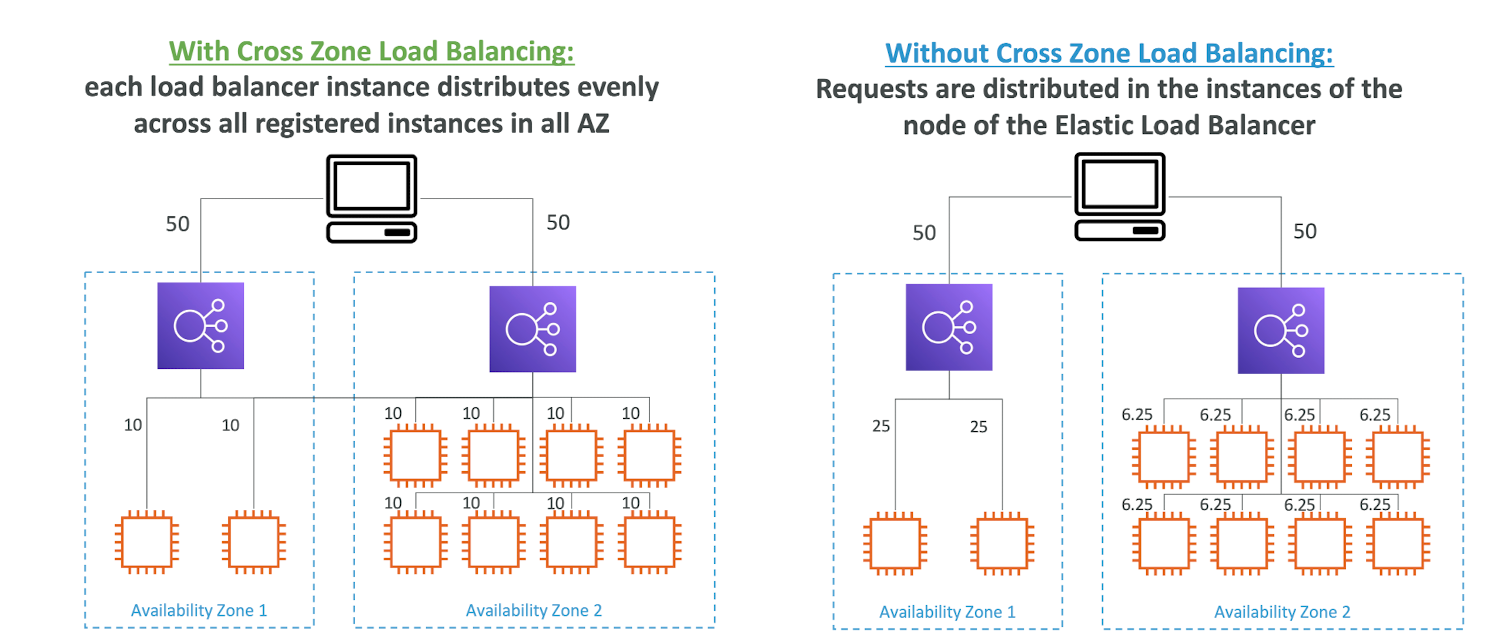

Cross - Zone Load Balancing

• Application Load Balancer
  • Enabled by default ( can be disabled at the Target Group level)
  • No charges for inter AZ data
• Network Load Balancer & Gateway Load Balancer
  • Disabled by default
  • You pay charges ($) for inter AZ data if enabled
• Classic Load Balancer
  • Disabled by default
  • No charges for inter AZ data if enabled





SSL/TLS - Basics



• An SSL Certificate allows traffic between your clients and your load balancer to be encrypted in transit (in-flight encryption)
• SSL refers to secure Sockets Layer, used to encrypt connections
• TLS refers to Transport Layer Security, which is a newer version
• Nowadays, TLS certificates are mainly used, but people still refer as SSL



• Public SSL certificates are issued by Certificate Authorities (CA)
• Comodo, Symantec, GoDaddy, GlobalSign, Digicert Letsencrypt, etc...



• SSL certificates have an expiration data (you set) and must be renewed

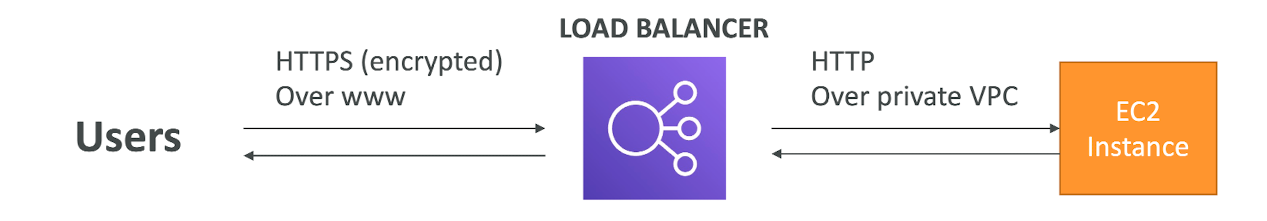

Load Balancer - SSL Certificates

• The load balancer uses an X.509 certificate (SSL/TLS server certificate)
• You can manage certificates using ACM (AWS Certificate Manager)
• You can create upload your own certificates alternatively
• HTTPS listener:
  • You must specify a default certificate
  • You can add an optional list of certs to support multiple domains
  • Cliets can use SNI (Server Name Indication) to specify the hostname they reach
  • Ability to specify a security policy to support older versions of SSL / TLS (legacy clients)





SSL - Server Name Indication (SNI)

• SNI solves the problem of loading multiple SSL certificates onto one web server (to serve multiple websites)

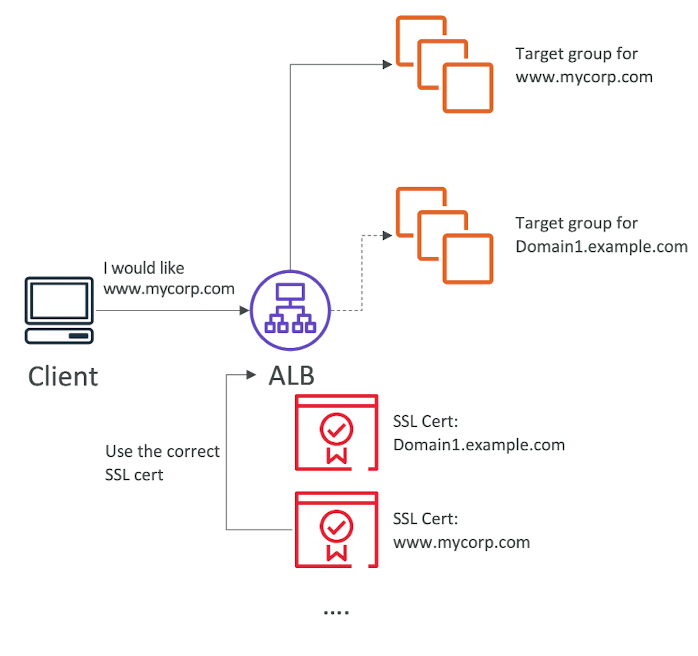

• It's a "newer" protocol, and requires the client to indicate the hostname of the target server in the initial SSL handshake
• The server will then find the correct certificate, or return the default one



Note:

• Only works for ALB & NLB (newer generation), CloudFront
• Does not work for CLB (older gen)





Elastic Load Balancers - SSL Certificates

• Classic Load Balancer (v1)
  • Support only one SSL certificate
  • Must use multiple CLB for multiple hostname with multiple SSL certificates
• Application Load Balancer (v2)
  • Supports multiple listeners with multiple SSL certificates
  • Uses Server Name Indication (SNI) to make it work
• Network Load Balancer (v2)
  • Supports multiple listeners with multiple SSL certificates
  • Uses Server Name Indication (SNI) to make it work







Connection Draining

• Feature naming
  • Connection Draining - for CLB
  • Deregistration Delay - for ALB & NLB

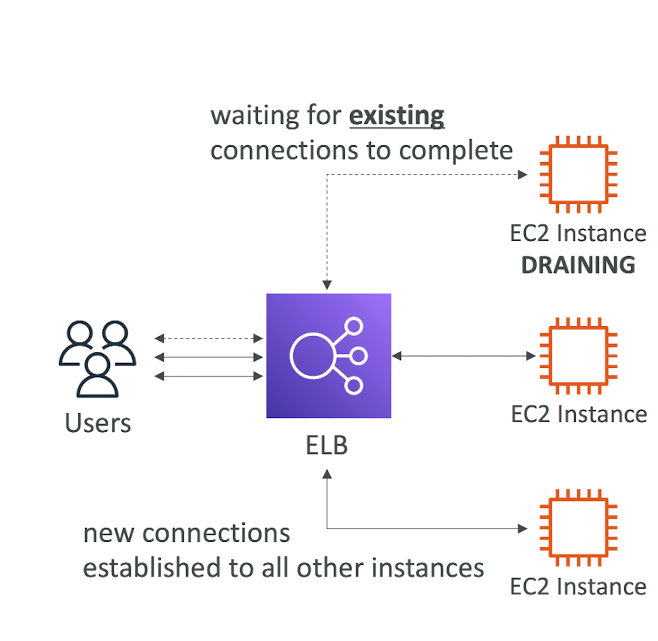

• Time to complete "in-flight requests" while the instance is de-registering or unhealthy
• Stops sending new requests to the EC2 instance which is de-registering
• Between 1 to 3600 seconds (default: 300seconds)
• Can be disabled (set value to 0)
• Set to a low value if your requests are short













What's an Auto Scaling Group?

• In real-life, the load on your websites and application can change
• In the cloud, you can create and get rid of servers very quickly



• The goal of an Auto Scaling Group (ASG) is to:
  • Scale out (add EC2 instances) to match an increased load
  • Scale in (remove EC2 instaces) to match a decreased load
  • Ensure we have a minimum and a maximum number of EC2 instances running
  • Automatically register new instances to a load balancer
  • Re-create an EC2 instance in case a previous one is terminated (ex:if unhealthy)
• ASG are free (you only pay for the underlying EC2 instances)



Auto Scaling Group in AWS

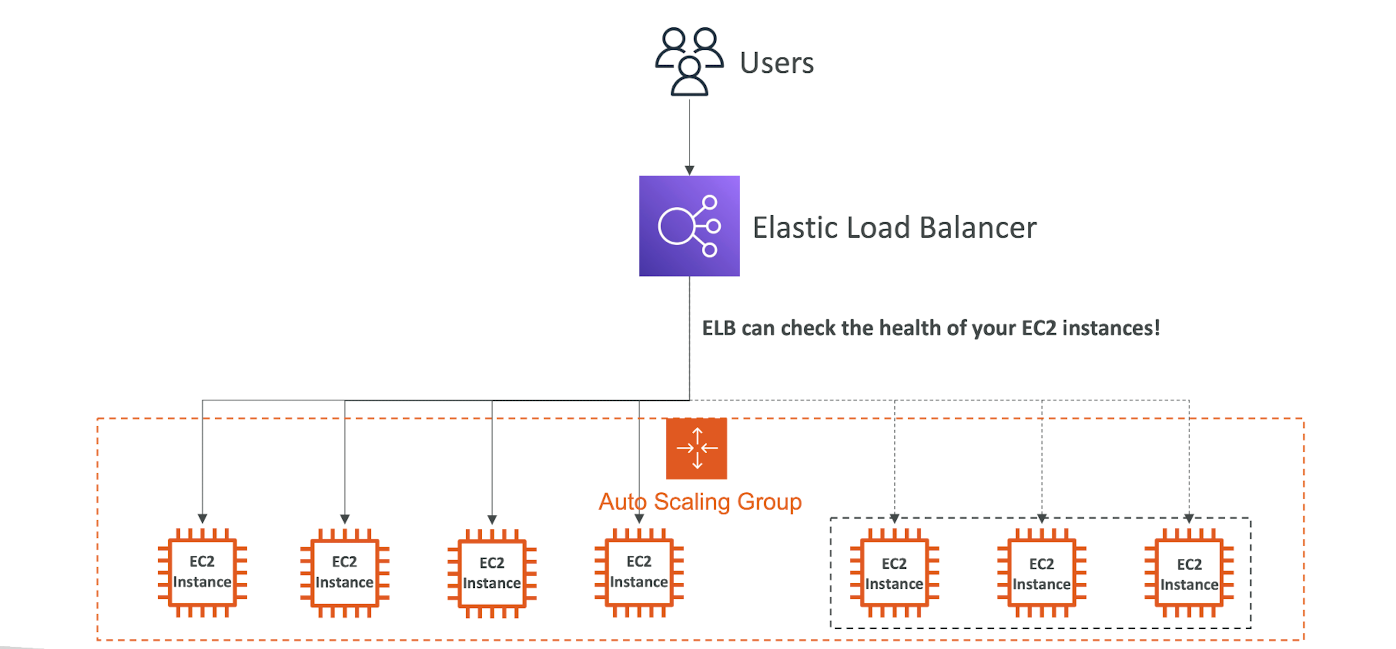

Auto Scaling Group in AWS With Load Balancer





Auto Scaling Group Attributes

• A Launch Template (older "Launch Configurations" are deprecated)
  • AMI + Instance Type
  • EC2 User Data
  • EBS Volumes
  • Security Groups
  • SSH Key Pair
  • IAM Roles for your EC2 Instances
  • Network + Subnets Information
  • Load Balancer Information
• Min Size / Max Size / Initial Capacity
• Scaling Policies













Auto Scaling - CloudWatch Alarms & Scaling

• It is possible to scale an ASG based on CloudWatch alarms
• An alarm monitors a metric (such as Average CPU, or a custom metric)
• Metrics such as Average CPU are computed for the overall ASG instances
  전체 ASG 인스턴스에 대해 평균 CPU와 같은 메트릭이 계산됨

• Based on the alarm:
  • We can create scale-out policies (increase the number of instance)
  • We can create scale-in policies (decrease the number of instaces)









Auto Scaling Groups - Dynamic Scaling Policies

• Target Tracking Scaling
  • Most simple and easy to set-up
  • Example: I want the average ASG CPU to stay at around 40%
• Simple / Step Scaling
  • When a CloudWatch alarm is triggered (exaple CPU > 70%), then add 2 units
  • When a CloudWatch alarm is triggered (example CPU < 30%) then remove 1
• Scheduled Actions
  • Anticipate a scaling based on know usage patterns
  • Example: increase the min capacity to IO at 5 pm on Fridays





Auto Scaling Groups - Predictive Scaling

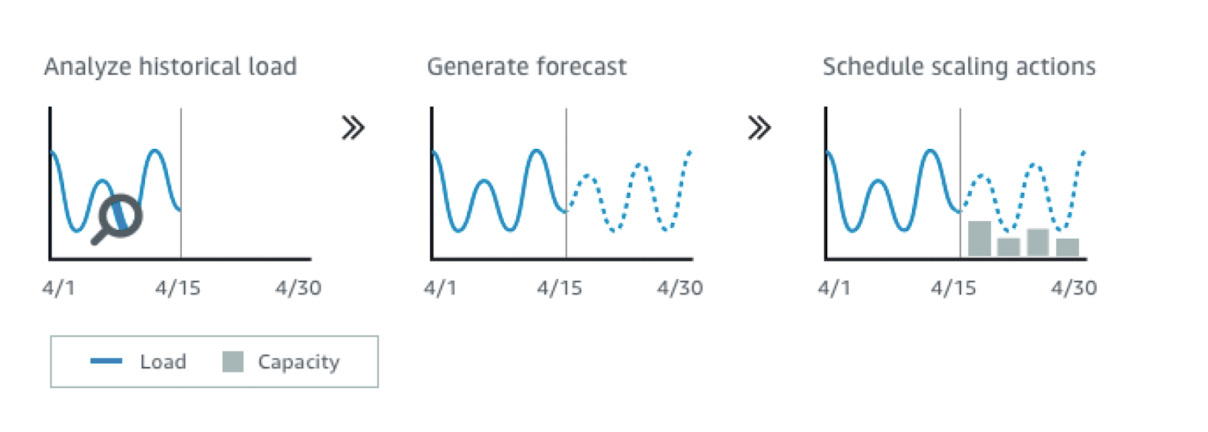

• Predictive scaling: continuously forecast load and schedule scaling ahead





Good metrics to scale on

• CPUUtilization: Average CPU utilization across your instances

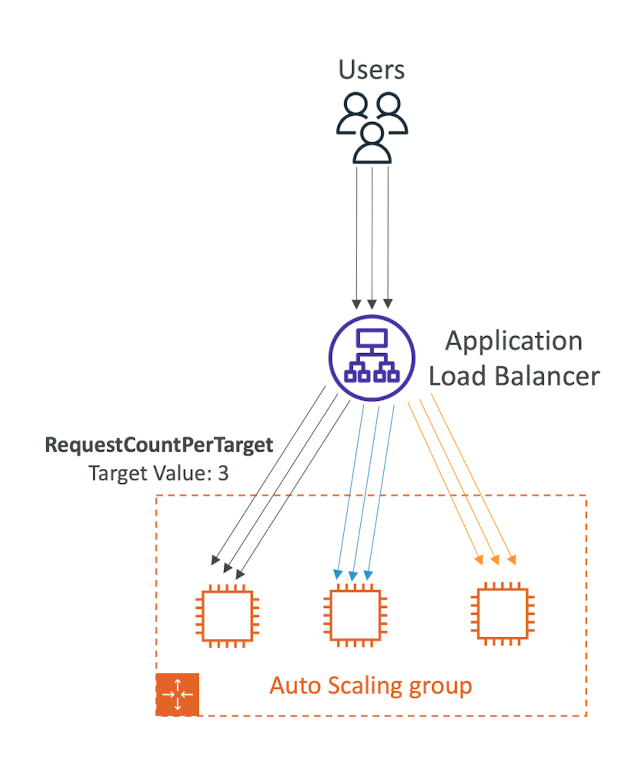

• RequestCountPerTarget: to make sure the number of requests per EC2 instances is stable
• Average Network In / Out (if you're application is network bound)
• Any custom metric (that you push using CloudWatch)



























Auto Scaling Groups - Scaling Cooldowns

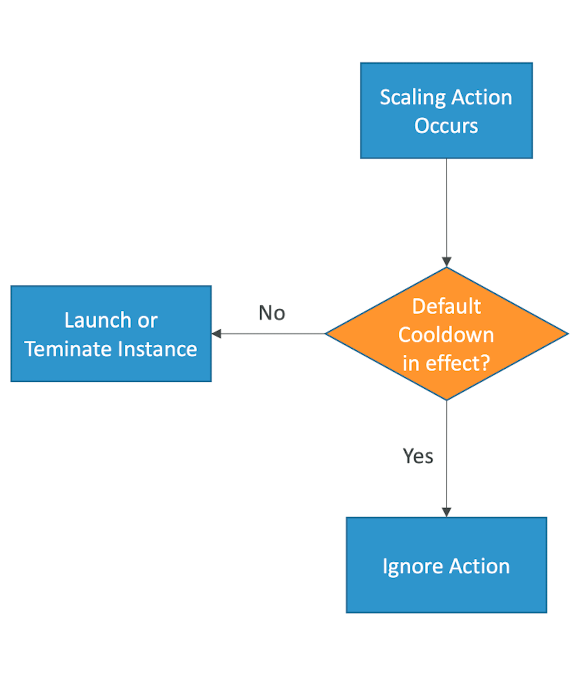

• After a scaling activity happens, you are in the cooldown period (default 300 seconds)
• During the cooldown period, the ASG will not launch or terminated additional instances (to allow for metrics to stabilize)



• Advice: Use a ready-to-use AMI to reduce configuration time in order to be serving request fasters and reduce the cooldown period

















Auto Scaling - Instance Refresh

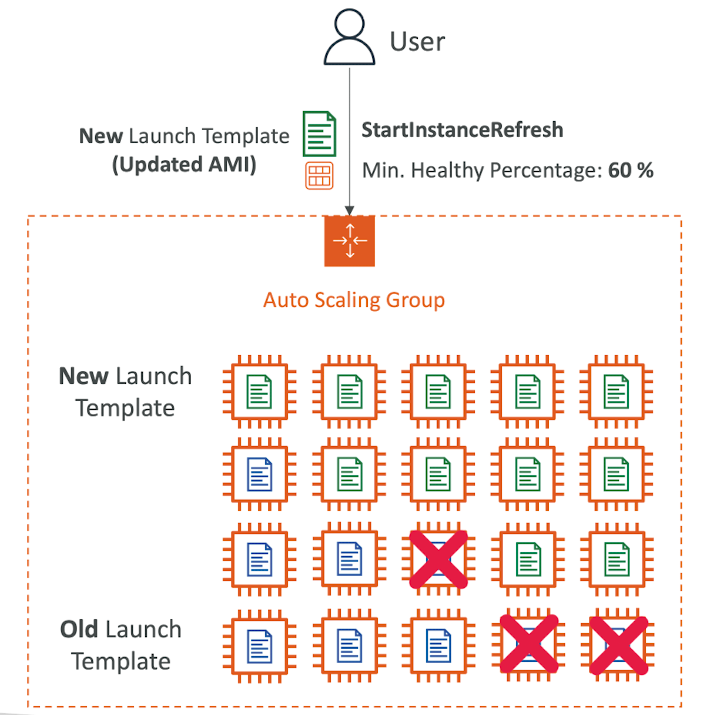

• Goal: update launch template and then re-creating all EC2 instances
• For this we can use the native feature of Instance Refresh
• Setting of minimum healthy percentage
• Specify warm-up time (how long until the instance is ready to use)
